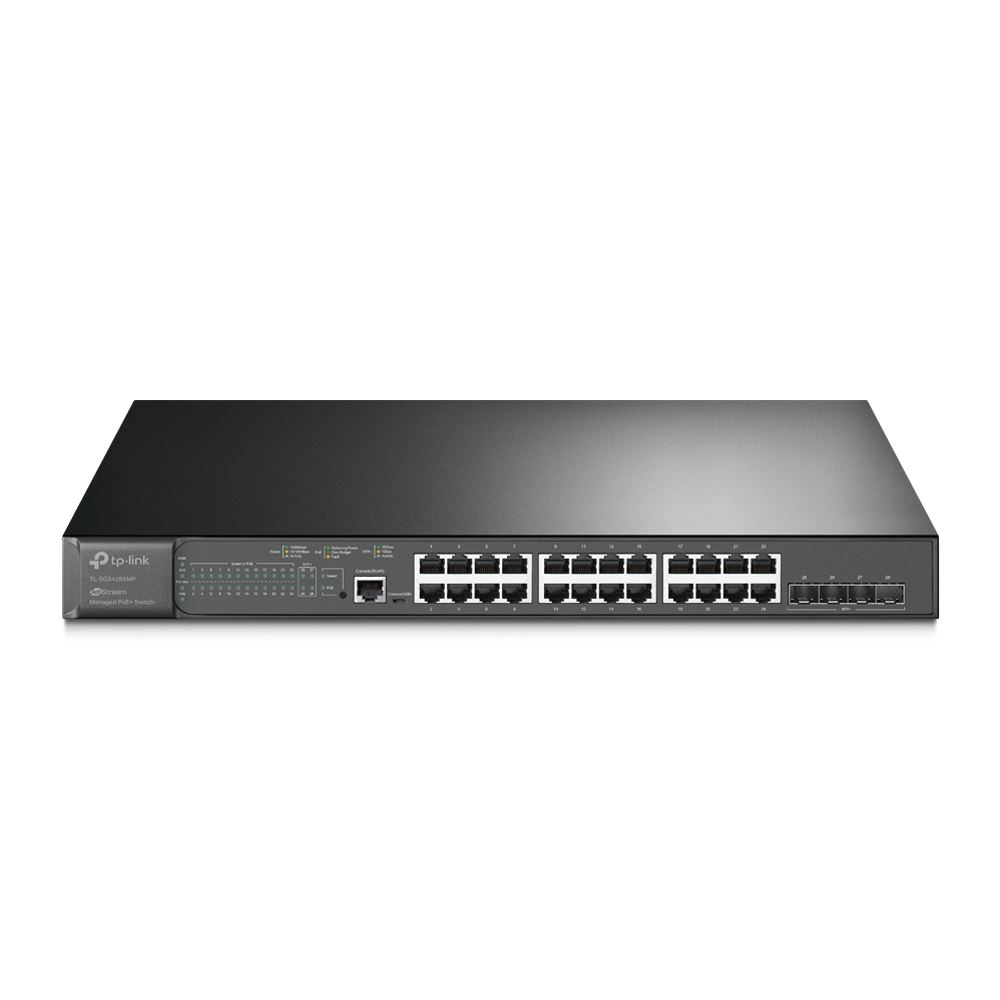

JetStream 24-Port Gigabit and 4-Port

DONANIM ÖZELLİKLERİ
Arabirim • 24× 10/100/1000 Mbps RJ45 Ports
• 4× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Sayısı 2
Güç Kaynağı 100-240 V AC~50/60 Hz
PoE+ Portları (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports, up to 30 W per port
• Power Budget: 384 W
Boyutlar ( W X D X H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Montaj Rack Mountable
Maks. Güç Tüketimi 34.4 W (110V/60Hz) ( no PD device connected)
465.8 W (110V/60Hz) ( with 384 W PD device connected)
Max Heat Dissipation 117.38 BTU/h (110 V/60 Hz) (no PD device connected)
1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)
PERFORMANS
Anahtarlama Kapasitesi 128 Gbps
Paket Yönlendirme Hızı 95.23 Mpps
MAC Adres Tablosu 16 K
Jumbo Frame 9 KB
