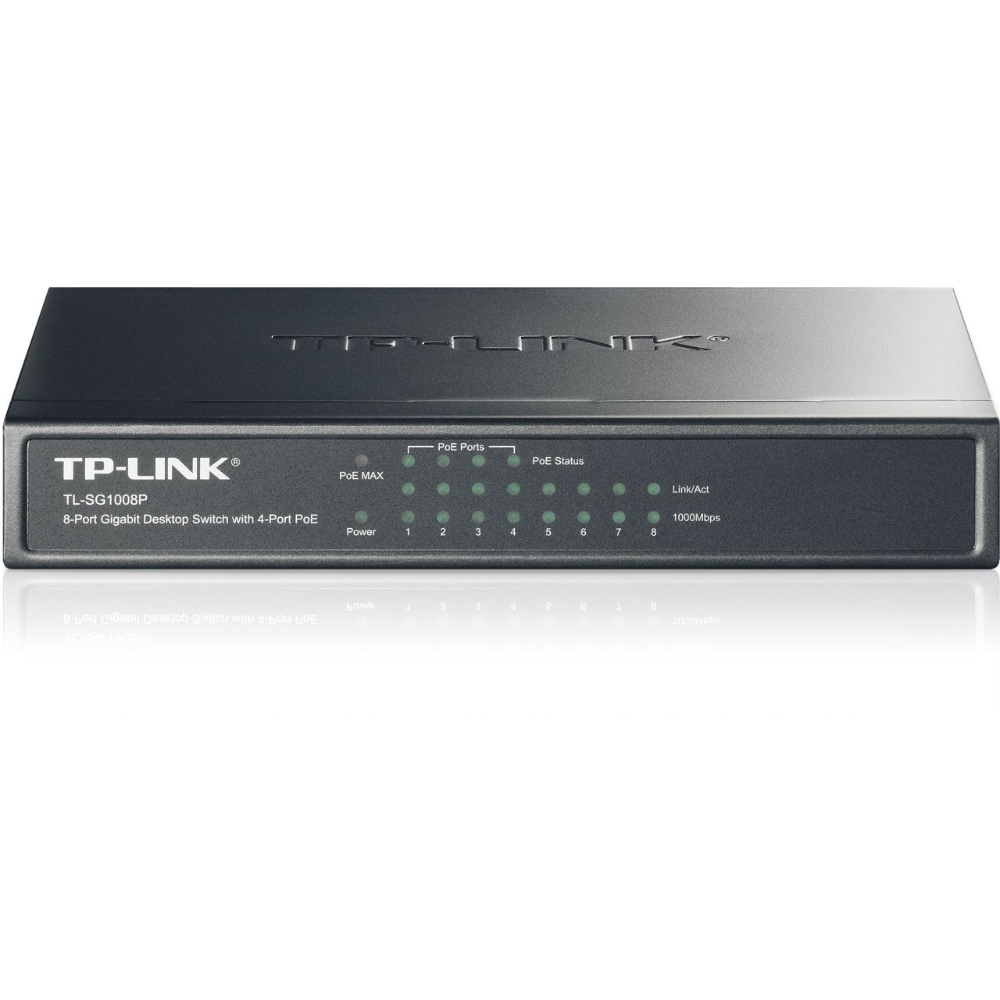

10/100/1000Mbps 8xPort Masaüstü PoE Siyah Çelik Kasa Switch

- Toplam 8 gigabit porttan 4 portu POE özelliklidir.
•8 10/100/1000Mbps RJ45 ports
•With four PoE ports, transfers data and power on one single cable
•Working with IEEE 802.3af compliant PDs, expands home and office
network
network
•Requires no configuration and installation
DONANIM ÖZELLİKLERİ
Arabirim 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Ağ Medyası 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
PoE Portları (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 53W
Backbound Bant Genişliği 16Gbps
MAC Adres Tablosu 8K
Harici Güç Kaynağı External Power Adapter(Output: 48VDC / 1.25A)
Boyutlar 6.7*3.9*1.1 in. (171*98*27 mm)
Fan Quantity Fanless
Yazılım Özellikleri
İletim Metodu Store-And-Forward
Gelişmiş Fonksiyonlar Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For
Half-Duplex Mode
DİĞERLERİ
Sertifika FCC, CE
Paket İçeriği TL-SG1008P, Power Adapter, User Guide
Tüketim 5.8 watts (max. no PD connected)
58.8 watts (max. with 53w PD connected)
Ortam Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
