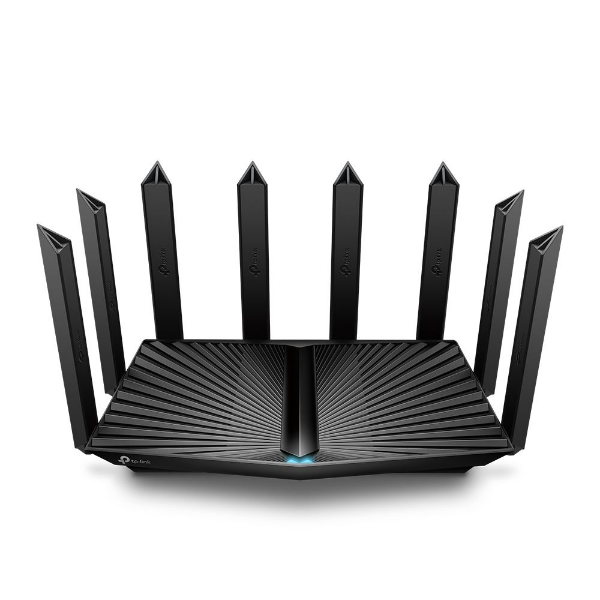

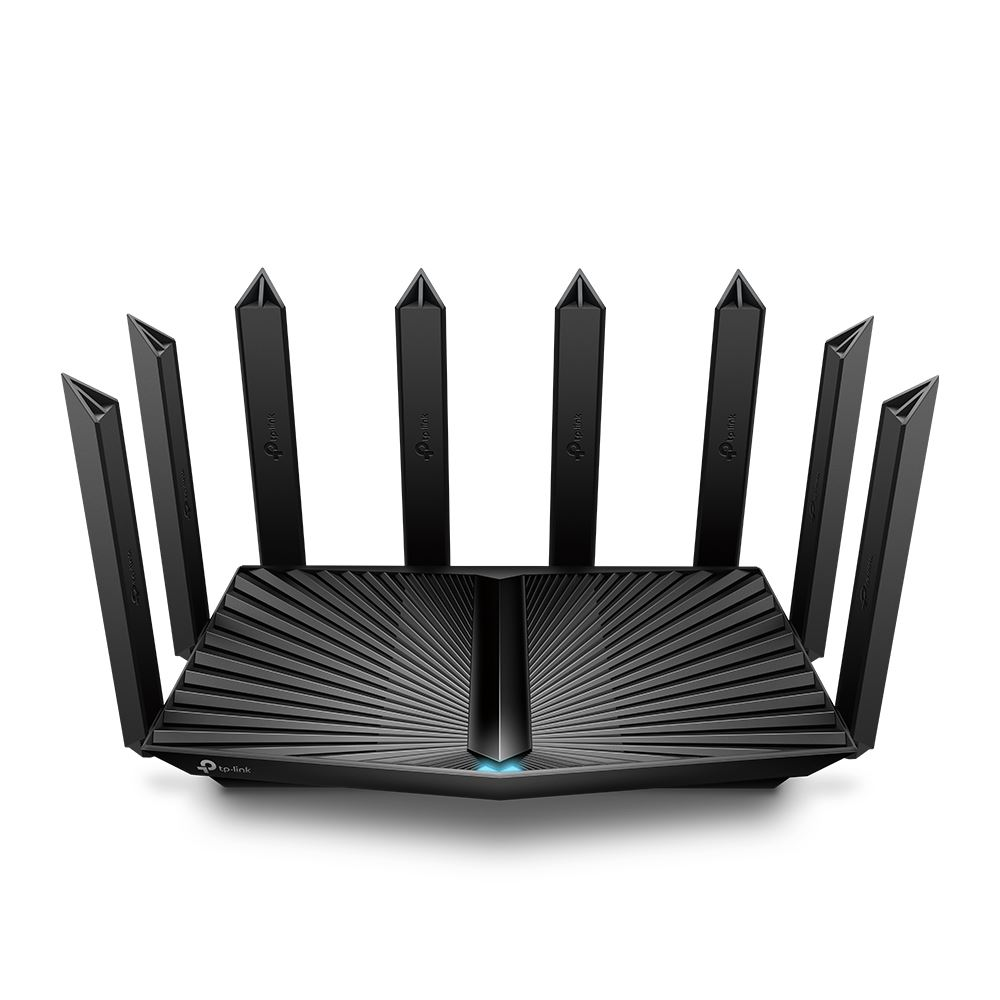

AX6000 1148 Mbps 2.4 GHz Wi-Fi 6 Router

WIRELESS
Standards:Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds:AX6000
• 5 GHz: 4804Mbps (802.11ax, HE160)
• 2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range:3+ Bedroom Houses
• 8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions
and large areas
• Beamforming
Concentrates wireless signal strength towards clients to expand WiFi
range
• High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity:High
• Dual-Band
Allocate devices to different bands for optimal performance
• OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime Fairness
Improves network efficiency by limiting excessive occupation
• DFS
Access an extra band to reduce congestion
• 8 Streams
Connect your devices to more bandwidth
Working Modes:• Router Mode
• Access Point Mode
HARDWARE
Ethernet Ports: • 1× 2.5 Gigabit WAN/LAN Port
• 1× Gigabit WAN/LAN Port
• 3× Gigabit LAN Ports
USB Support: 1× USB 3.0 Port
USB Sharing:
• FTP Server
• Media Server
• Samba Server
Buttons:• LED On/Off Button
• WPS Button
• Wi-Fi On/Off Button
• Power On/Off Button
• Reset Button
Power:• 12 V/3.3 A
SECURITY
WiFi Encryption: • WPA3*6
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)
Network Security:SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network: • 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
VPN Server: • OpenVPN
• PPTP
• L2TP
VPN Client:• OpenVPN
• PPTP
• L2TP
SOFTWARE
Protocols:• IPv4
• IPv6
Service Kits:HomeShield
OneMesh™
Without replacing your existing devices or buying a whole new WiFi
ecosystem, OneMesh™ helps you create a more flexible network that covers
your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls:HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
WAN Types:• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service:QoS by Device
Cloud Service:• Auto Firmware Upgrade
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
NAT Forwarding:• Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV: • IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP: • Address Reservation
• DHCP Client List
• Server
DDNS:• TP-Link
• NO-IP
• DynDNS
Management:• Tether App
• Webpage
Check Web Emulator>
OTHER
System Requirements:Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+,
Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications:FCC, RoHS
Environment:Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
TEST DATA
WiFi Transmission Power: FCC
<24dBm (5.25GHz~5.35GHz&5.47GHz~5.73GHz)
<30dBm (5.15GHz~5.25GHz&5.735GHz~5.835GHz)
<30dBm (2.4GHz)
WiFi Reception Sensitivity: • 2.4 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCB124:B136S11: -67dBm,
11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS11: -64dBm,
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -67dBm,
11ax HE40 MCS0: -94dBm, 11ac HE40 MCS11: -64dBm
WiFi Reception Sensitivity: • 2.4 GHz:B124:B136
11ac VHT20 MCS0: -96dBm, 11ac VHT20 MCS11: -66dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -63dBm,
11ac VHT80 MCS0: -91dBm, 11ac VHT80 MCS11: -61dBm,
11ac VHT160 MCS0: -86dBm, 11ac VHT160 MCS11: -58dBm,
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm,
11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -61dBm,
11ax HE160 MCS0: -86dBm, 11ax HE160 MCS11: -58dBm
PHYSICAL
Dimensions (W×D×H):10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)
Package Contents:• Wi-Fi Router Archer AX80
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
